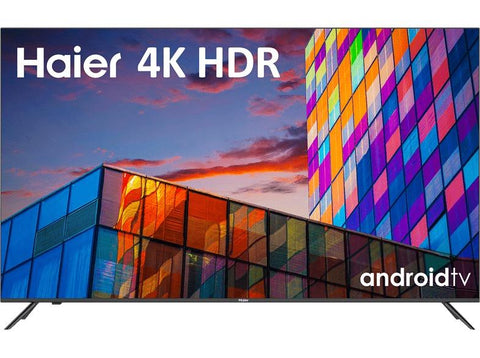

Features of the 2023 Haier K7 Series H55K702UG 55"
Haier K7 Series H55K702UG
55" 4K HDRParts
Summary
55"
4K
HDR
48.4 in
27.3 in
3.2 in
LCD
350 nits
--, dynamic contrast 4000:1
Total 20 W
Android TV
Basics: Haier K7 Series H55K702UG specs: Technical sheet
Brand
- Brand
- Haier
- Serie
- K7 Series
- Model
- K7 Series H55K702UG
- Other Codes
Release Date
- Year
- 2023
LCD LED
Backlight
Direct LEDDirect LED lighting distributes light more evenly across the panel
Technology
IPSIPS technology has a good viewing angle, the contrast however is worse than in a VA
Colorimetry
RGB filterThe RGB filter is found on all televisions and allows you to generate the three RGB colors
Final image
GoodGood choice for normal use, if you don't need pure blacks
Technical Details
Size (inches) and resolution
- Diagonal
- 55 inches
- Resolution
- 4K • 3840 x 2160
- Aspect ratio
- 16:09
- Pixel density
- 55 ppi
Technology
- Panel type
- LCD technology
- Subpixel type
- RGB
- Refresh rate
- 60 Hz
- Panel Manufacturer
- --
Backlight and contrast
- Backlight type
- LED

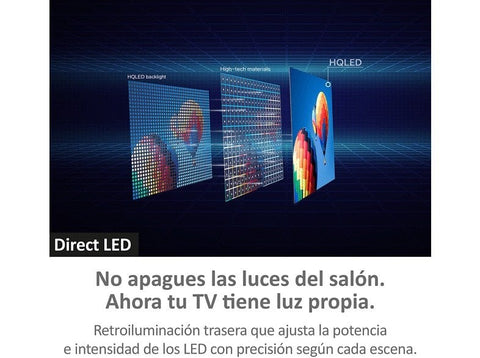

- Backlight form
- Direct LED
- Brightness
- Contast
- Light sensor
- No
Colorimetry
- Quantum Dots
- No
- Color spaces
- Color depth
- 8 bits
HDR
- Tradename
- HDR technologies
-
- HDR10
- HLG
Crystal
- Anti-glare filter
- --
- Vision angle
-
HorizontalVertical
Processing
These features modify the images received by television via software, in many cases they create unwanted artifacts, we disable some of them, but here you have them ...
- Image processor
Response times
- Minimum time
- 8 ms
- Average time
- --
- Input lag
- --
- Gaming
- ALLM , Game Mode, QMS-VRR
Technologies
Sound
- Speakers
- 10W 2x
- Power
- 20 W
- Output channels
Sound Technologies
- Technologies
-
- Dolby Audio
- Dolby Digital Plus
- DTS
- DTS HD
- DTS X
Digital tuner:
- Terrestrial
-
- DVB-T
- DVB-T2
- DVB-S
- DVB-S2
- DVB-C
- Satelite
- Cable
-
- DVB-C
- ATSC & QAM
- No
- ISDB
- No
- DTMB
- No
Analog tuner
- NTSC
- --
- PAL
- Yes
- SECAM
- Yes
Hybrid television
- HbbTV
- Yes
Cable connections
- RF antenna
- Antenna (RF) 1x
- HDMI
- HDMI 2.1 4x CEC
- USB
- USB 2.0 2x
- Satellite
- DVB-S DVB-S2 Satellite In (Main; F-type female) 1x
- Composite
- CI
- CI+ 1.3 1x
- Optical Audio
- Optical Audio Out 1x
- 3.5mm audio
- 3.5 mm Audio Out 1x
- Ethernet
- Ethernet RJ45 1x
Wireless connections
- Wi-Fi
- Yes • 802.11b, 802.11g, 802.11n,
- Bluetooth
- Yes •
Content delivery
- Chromecast
- DLNA
- Wi-Fi Direct

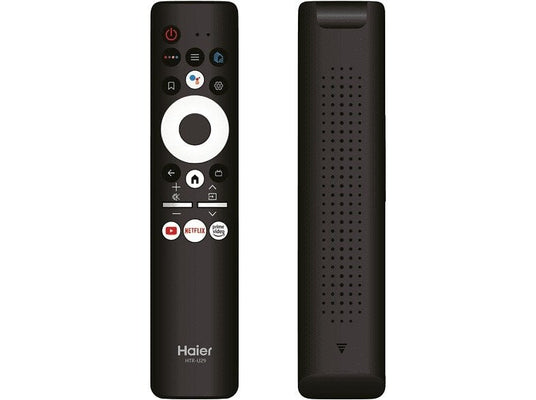

Remote control
- Type of command
- --
- Control of multiple devices
- Yes
Others
- PVR recording
- Yes • PVR
- PIP
- No
Design
Image gallery
With Stand

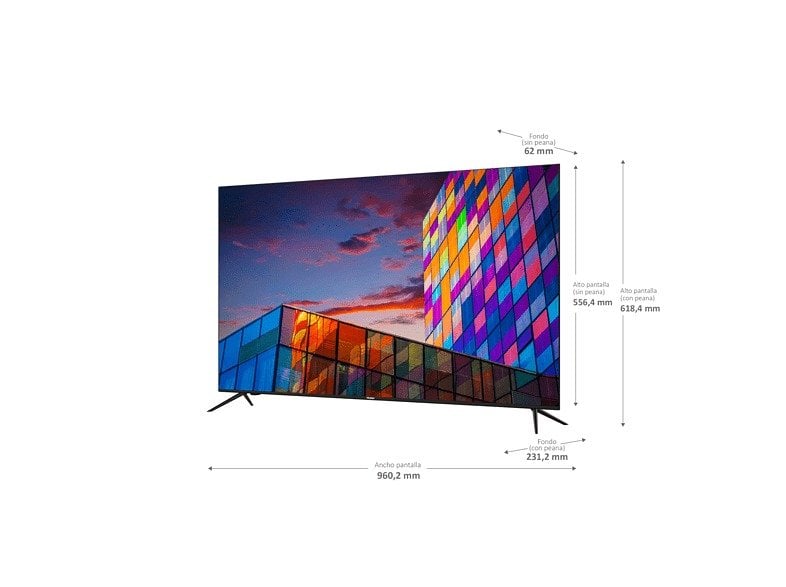

- Dimensions
- 122.9 cm•77.4 cm•26.5 cm
- Weight
- 7.1 Kg
Without Stand
- Dimensions
- 122.9 cm•69.4 cm•8.1 cm
- Weight
- 6.87 Kg
- Screen shape
- Flat
- Frameless
- No
- Colors
Stand
- Removable stand
- No
- Stand shape
- C Shape
VESA
- VESA size
- 200 x 200 mm
Others
- Single cable
- No
- Ambient mode
- No
Operating System
Operating System
- SW
- Android • Android TV
Voice assistants
- Alexa
- Google Assistant
- Yes
- Voice control
- Yes
Hardware
- SOC model
- --
- RAM
- 2GB
- ROM
- 8GB
Consumption
- HbbTV
Cable connections
- Energy efficiency
- F
- Standby consumption
- 0.5 W
- Average consumption
- 130 W
- Consumption
- --
Power supply
- Power supply
- 220 V - 240 V (volts)
- Wi-Fi
- Power supply frequency
- 50 Hz - 60 Hz (hertz)
Certificates
- Certificates
